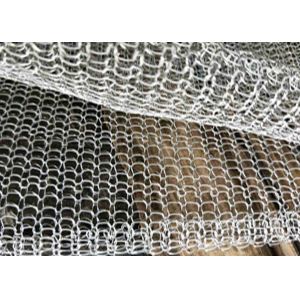

Monel Knitted Wire Mesh Monel Is A Nickel-Copper Alloy With Acid Resistant
Monel knitted wire mesh introduction:
The knitted wire mesh is manufactured on a circular wire knitting machine using a single or double wire. The mono-filament interlocking-loop construction gives strength while allowing it to conform to almost any size or shape. The manufacturing process allows for an optional elastomer core to be included in to the product to aid compression. An additional environmental seal/carrier is also an option. It is available in a variety of combinations to suit many EMC and environmental sealing applications. Wire types are tin plated copper clad steel known as TCS, Monel which is an alloy of copper and nickel, Aluminium and stainless steel. Solid knitted wire meshes are supplied as round cord sections, rectangular and dumbbell sections. Knitted wire mesh over elastomeric cores can be other shapes such as D shape, tubes, clip on profiles and more.
The alloy Monel is a Nickel-Copper alloy. This alloy has got a high corrosion resistance and because of that, the mechanical properties will be not affected by high temperatures (up to 480°C).
Monel isn’t magnetic and has good workability in hot and cold condition.
Because of these properties, Monel can be found in applications as piping in seawater, offshore, shipping and in chemical equipment where acids are used.
Monel is available in several alloys with each its specific characteristics. we supply knitted wire mesh and woven wire mesh produced out of Monel-alloys.
Benefits:
Resistance to static and running seawater attack
High mechanical strength
Resistance to SCC
Prevents attack by acidic and alkali media
Perfect finish
Prolong service
Materials:
Pure nickel: Nickel 200/201, Nickel 270
Nickel Alloy: Cr20Ni80, Monel 400, Inconel 600
Others available, please ask
Monel 400 Mesh Chemical Composition:
| C | Cu | Fe | S | Mn | Ni | Si |
| <0.3 % | 28% to 34 % | <2.5% | <0.024% | <2 % | >63 % | 0.5 %
|
Monel knitted wire mesh specfications:
| wire | opening size | width | length | number of wires |
| mm | inch | mm | inch | mm | m | Nos. |
| 0.10 | 0.0039 | 1 to 3 | 0.039 to 0.118 | 3 to 50 | 10 to 200 | 1 to 3 |
| 0.11 | 0.0043 | 1 to 3 | 0.039 to 0.118 | 3 to 80 | 10 to 200 | 1 to 3 |
| 0.12 | 0.0047 | 1 to 3 | 0.039 to 0.118 | 3 to 80 | 10 to 100 | 1 to 3 |
| 0.15 | 0.0059 | 1 to 3 | 0.039 to 0.118 | 9 to 120 | 10 to 100 | 1 to 3 |
| 0.17 | 0.0067 | 1 to 3 | 0.039 to 0.118 | 9 to 120 | 10 to 50 | 1 to 2 |
| 0.19 | 0.0075 | 1 to 3 | 0.039 to 0.118 | 15 to 120 | 10 to 50 | 1 to 2 |
| 0.21 | 0.0083 | 3 to 7 | 0.118 to 0.276 | 15 to 120 | 10 to 50 | 1 to 2 |
| 0.23 | 0.0091 | 3 to 7 | 0.118 to 0.276 | 40 to 1000 | 10 to 50 | 1 to 2 |
| 0.25 | 0.0098 | 3 to 7 | 0.118 to 0.276 | 40 to 1000 | 10 to 50 | 1 to 2 |
| 0.27 | 0.0106 | 3 to 7 | 0.118 to 0.276 | 60 to 1000 | 10 to 50 | 1 |
| 0.28 | 0.0110 | 3 to 7 | 0.118 to 0.276 | 60 to 1000 | 10 to 50 | 1 |
| 0.30 | 0.0118 | 3 to 7 | 0.118 to 0.276 | 60 to 1000 | 10 to 50 | 1 |
Application:
Usage of Monel knitted wire mesh includes:
In the EMI & RFI shielding applications, for shielding gaskets, elastomer cores and cable wrap.
In the filtration & separation applications, for the screen of the mist eliminator.
Monel knitted wire mesh rolls
Roll width 3 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on flat)
Roll length 15 m, 30 m, 50 m to 200 m
Other rolls size on request
